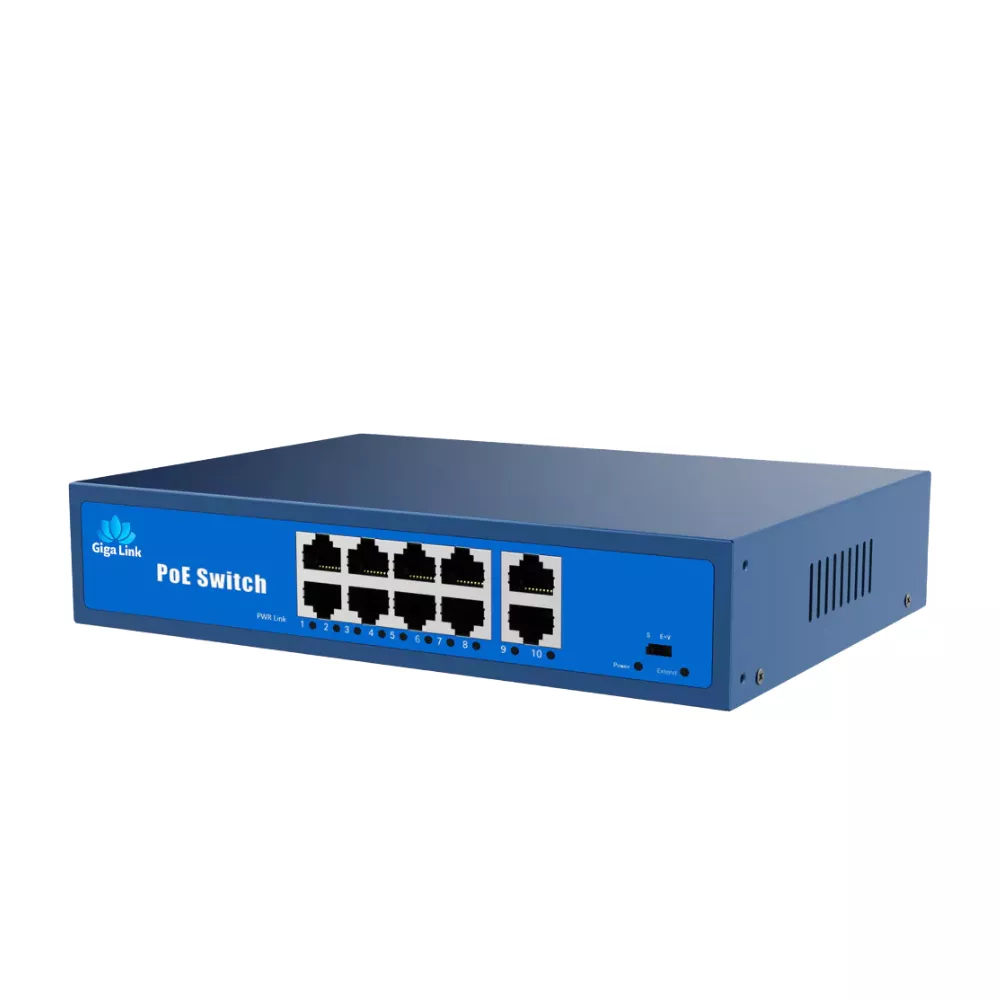

Gigalink RR-GQ82A 8 Port PoE Switch
The Gigalink RR-GQ82A is an 8-port PoE switch with up to 30W per port and a 120W total power budget, supporting a 250m power range for IP cameras and access points. It offers 10Gbps switching, store-and-forward mode, and a compact, durable design with LED indicators for easy monitoring and reliable network performance.
Description
Gigalink RR-GQ82A is an 8-port PoE switch that enhances network connectivity. Each port meets the IEEE802.3af/at standard and offers up to 30W. This makes it ideal for IP cameras and wireless access points. Its end-span PoE type and 250-meter power range add flexibility. Moreover, it has a total power capacity of 120W, ensuring reliable performance.
This switch meets IEEE802.3 and 802.3u standards. It has a 10Gbps capacity and uses store-and-forward mode to reduce latency. It supports 100BASE-TX over standard cables, ensuring compatibility with modern networks. It also has a power priority system and automatic MAC address learning. They improve efficiency and adaptability.
The device is durable. It works in temperatures from -10°C to 55°C. It’s compact, weighing 1kg and measuring 200×145×45mm. This makes integration easy. LED indicators show link activity, power, and PoE status for simple monitoring.
The Gigalink RR-GQ82A is a top choice for businesses needing reliable PoE networking. Its design is efficient and functional. It blends advanced technology, flexibility, and energy efficiency. It suits various networking needs and ensures top performance in different settings.
Gigalink RR-GQ82A Specification
| Product | Specifications |
|---|---|
| Model | RR-GQ82A |
| POE Port | 1 to 8 support IEEE802.3AF/AT Standard |
| Output Power | 15.4W/30W IEEE802.3af/at |
| Power Pin | Both 1/2+、3/6- and 4/5+7/8- |
| Whole Power | ≤120W (52V 2.3A) |
| POE Protocol | IEEE 802.3af/IEEE 802.3at |
| POE Type | End-span |
| Power Distance | ≤250m |
| Network Standard | IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at |
| Network Medium | 10/100BASE-TX:5 class and above non shielded twisted pair |
| Data Distance | ≤250m |
| Switch Capability | 10Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 100BASE-tx：14800pps/port |
| MAC Address | MAC address table 2K |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and agingIEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| LED Indicator | Each port occupied 1 LINK/ACT.100Mbps,POE Status Indicator, Whole power indicator |
| Working Environment | Working temperature：-10°– 55°C |
| Weight | 1kg |
| Size | 200×145×45(L*W*H)mm |
