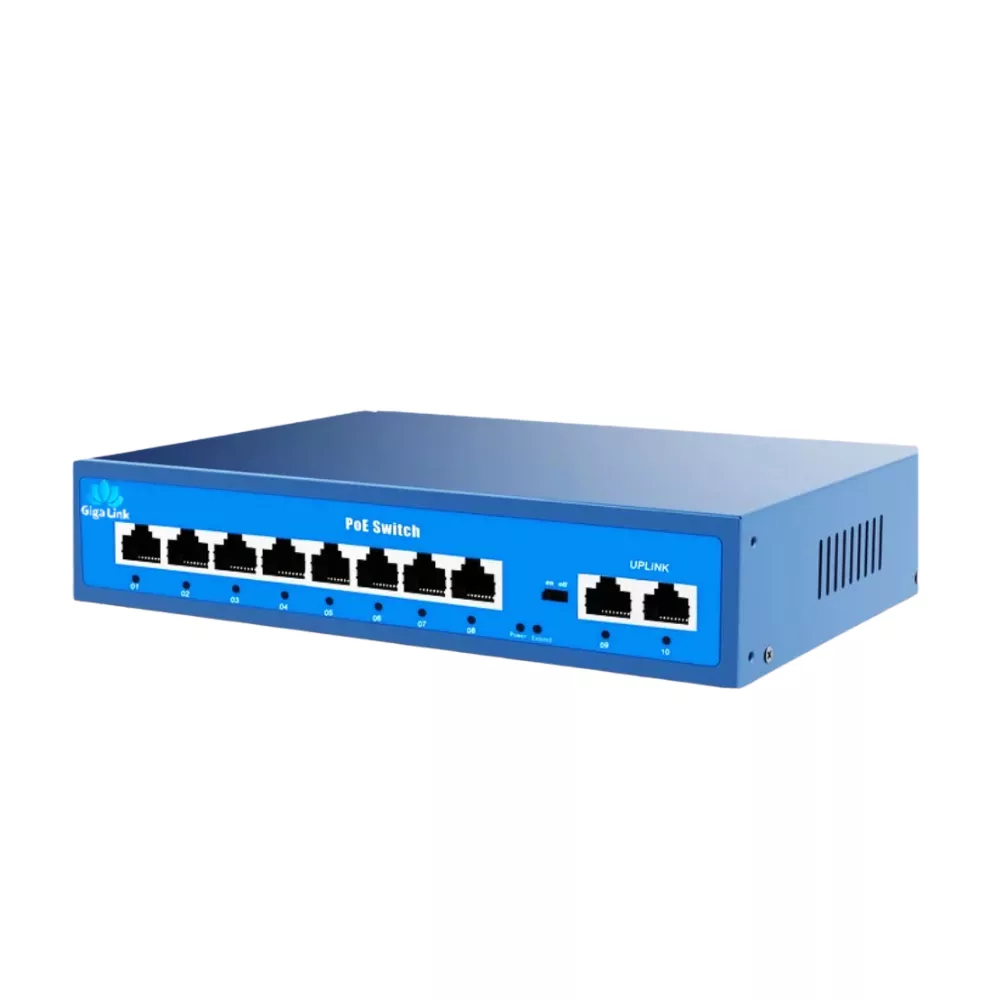

Gigalink RR-GB82A 8 Port PoE Switch
The Gigalink RR-GB82A is an 8-port PoE switch with up to 30W per port and a 120W total power budget, supporting a 250m PoE range for IP cameras and access points. It offers 1.6Gbps switching, store-and-forward mode, MAC address management, and a compact, durable design with LED indicators for reliable network performance.
Description
Gigalink RR-GB82A is a robust 8-port PoE switch designed for high-performance networking. This device meets IEEE 802.3af/at standards and provides up to 30W per port. It efficiently powers devices like IP cameras and access points. Moreover, its Power over Ethernet (PoE) function works up to 250 meters. This allows for flexible setup without losing connectivity.
This switch has a 1.6Gbps capacity and supports full and half-duplex communication. Its store-and-forward mode ensures reliable data transfer. It also learns and manages MAC addresses to boost efficiency. LED indicators show real-time port activity and power status.
The RR-GB82A is durable and works in -10°C to 55°C. It’s compact, at 200x145x45mm and 1kg. Its power priority system ensures stable operation under heavy loads.
The Gigalink RR-GB82A has advanced features in an easy-to-use design. It’s perfect for small to medium networks. It supports 10/100BASE-TX connections via unshielded twisted pairs, ensuring smooth integration. Its performance and energy efficiency make it a top choice for modern networking.
Gigalink RR-GB82A Specification
| Product | Specifications |
|---|---|
| Model | RR-GB82A |
| POE Port | 1 to 8 support IEEE802.3AF/AT Standard |
| Output Power | 15.4W/30W IEEE802.3af/at |
| Power Pin | Both 1/2+、3/6- and 4/5+7/8- |
| Whole Power | ≤120W (52V 2.3A) |
| POE Protocol | IEEE 802.3af/IEEE 802.3at |
| POE Type | End-span |
| Power Distance | ≤250m |
| Network Standard | IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at |
| Network Medium | 10/100BASE-TX:5 class and above non shielded twisted pair |
| Data Distance | ≤250m |
| Switch Capability | 1.6Gbps |
| Forwarding Mode | Store and forward |
| Forwarding Rate | 10BASE-T:14880PPS/port 100BASE-tx：14800pps/port |
| MAC Address | MAC address table 1K |
| Port Function | Power priority mechanism, fast and forward, MAC automatic learning and agingIEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
| LED Indicator | Each port occupied 1 LINK/ACT.100Mbps,POE Status Indicator, Whole power indicator |
| Working Environment | Working temperature：-10°– 55°C |
| Weight | 1kg |
| Size | 200×145×45(L*W*H)mm |
